How to Connect MerchantSpring to Claude Desktop (MCP Setup Guide)

There are two ways to install the MerchantSpring MCP server.

Method	Recommended For	Updates
Method 1 – Install using MCP file (.mcpb / .dxt)	Most users	Requires installing a new file for updates
Method 2 – Configure via MCP config file	Technical users	Updates automatically when new features are released

We recommend Method 1 for most users.

Method 1 (Recommended): Install Using the MCP File

This is the simplest way to connect MerchantSpring to Claude Desktop.

The installation file contains a specific version of the MCP server. When a new version is released, you will need to install the updated file.

Prerequisites

Before starting, make sure you have:

• Claude Pro subscription (or higher)

• Claude Desktop installed on macOS or Windows

Download Claude Desktop:  https://claude.ai/download

⚠ Important: Claude Desktop must already be open before installing the MCP file.

Step 1: Download the MCP File

Download the latest file: merchantspring-mcp-v1.1.3.mcpb
Released: 29 Dec 2025

Step 2: Install the MCP Server

1. Open Claude Desktop

2. Install the MCP file using one of the following methods:

Option 1: Double-click the .mcpb file
Option 2: Drag the .mcpb file into the Claude Desktop window

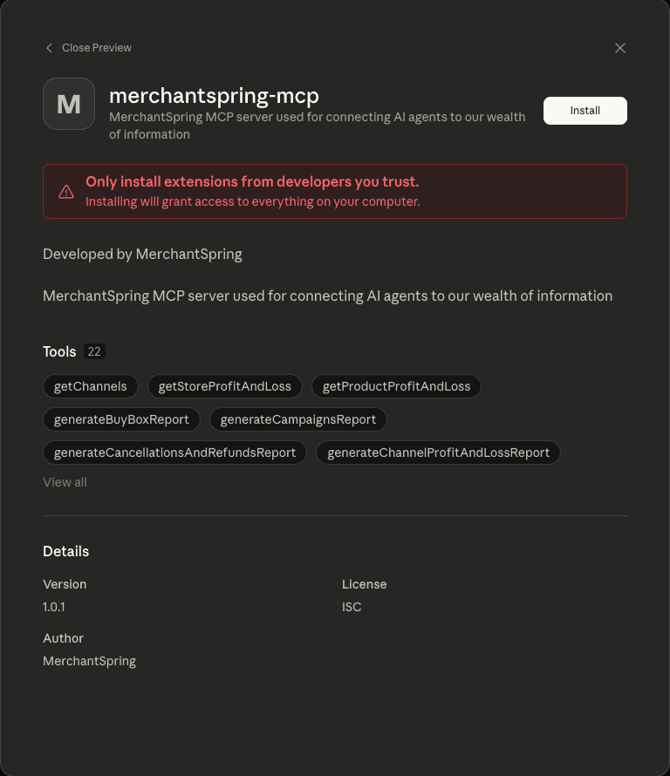

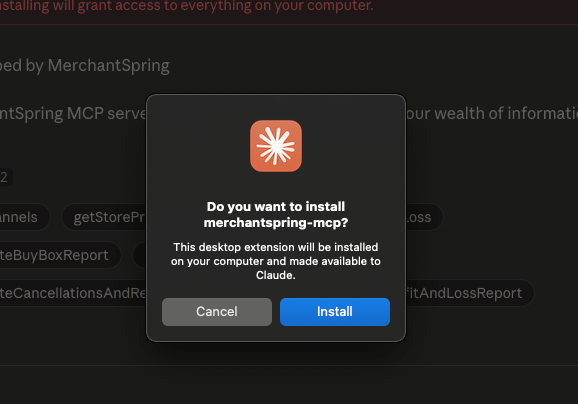

You will see an installation prompt.


Click Install and confirm.

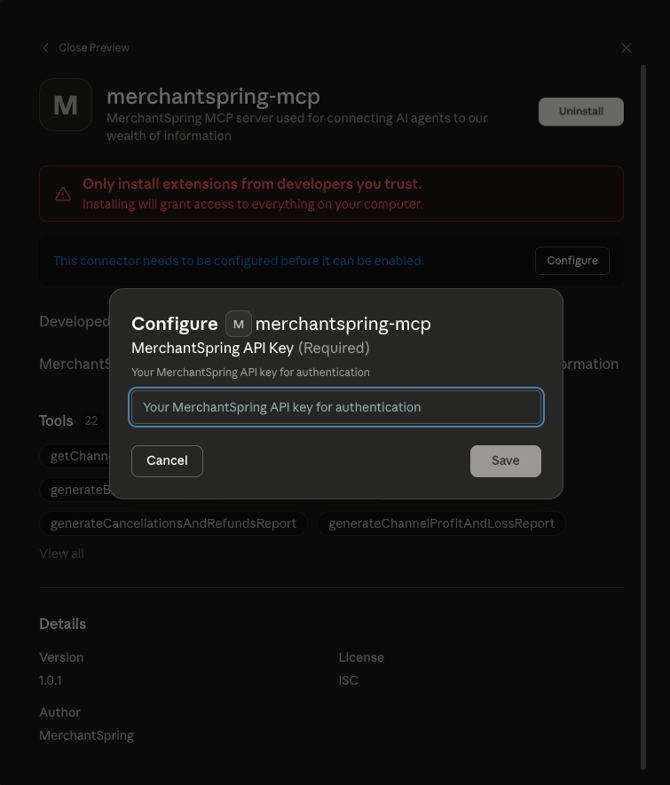

Step 3: Enter Your MerchantSpring API Key

After installation, Claude will prompt you for your MerchantSpring API key.
You can generate an API key here: https://developer.merchantspring.io/dashboard
Paste the API key into the prompt.

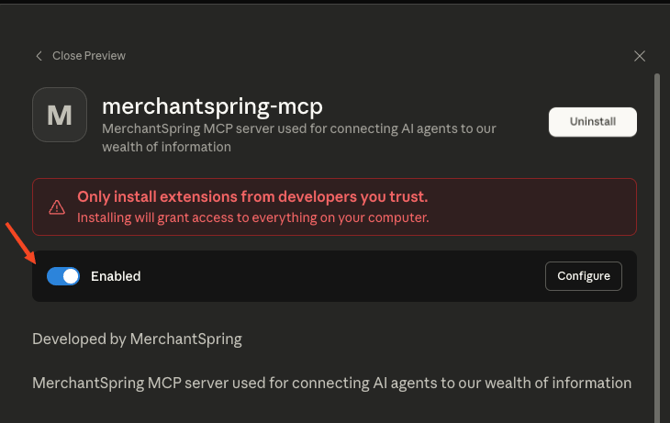

 Step 4: Enable the MCP Server

After entering the API key:

1. Open Claude Settings

2. Find MerchantSpring MCP

3. Toggle the server ON

Step 5: Confirm the Setup

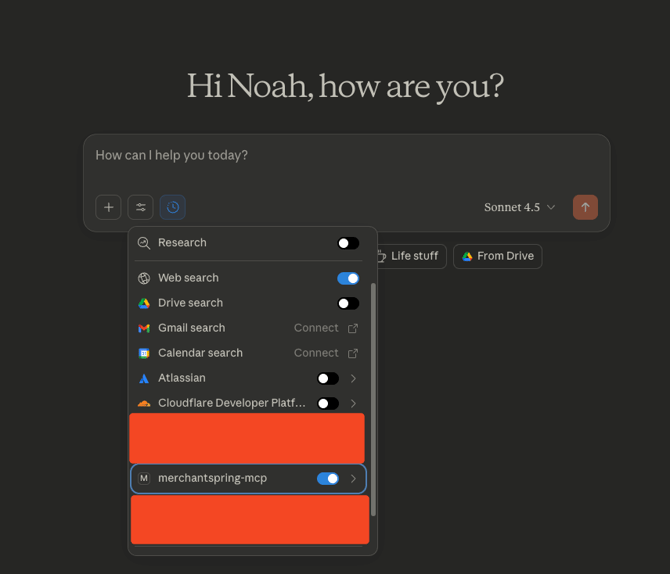

Once enabled, the MCP server will appear in the Claude chat interface.
Claude will automatically use MerchantSpring tools when needed.

You can test the connection with a prompt such as:  “How many channels do I have connected?”

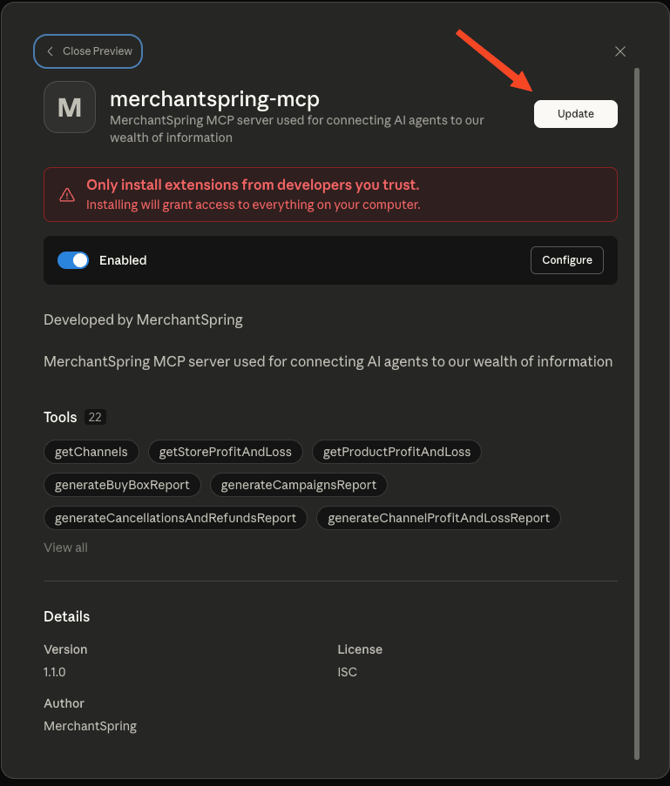

Updating the MCP Server (.mcpb Method)

Because this method installs a fixed version of the MCP server, updates require installing a new file.

Before updating, make sure:
 • You have downloaded the latest MCP file
 • Claude Desktop is open

Steps to update

1. Download the latest MCP file

2. Open Claude Desktop

3. Either:

   • Double-click the file, or

   • Drag it into Claude Desktop

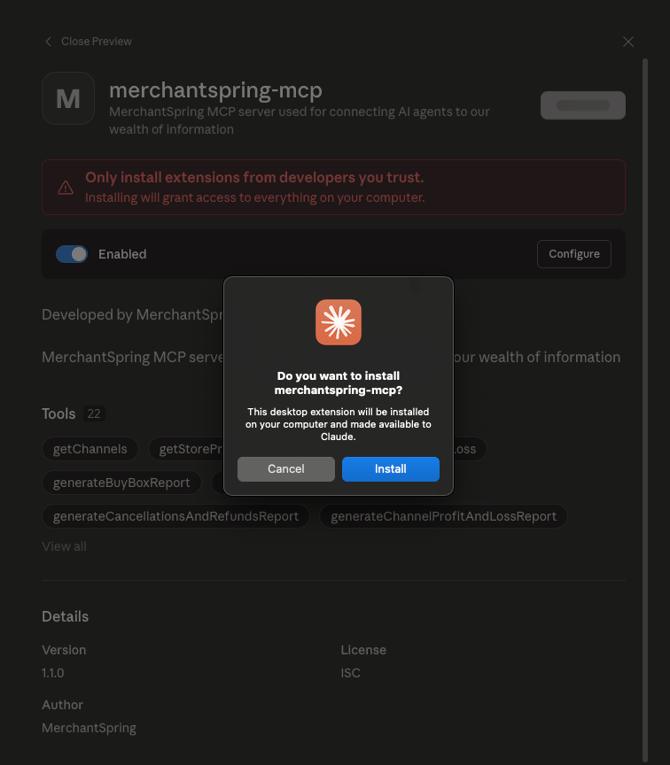

Instead of Install, you will see Update.


Click Update and confirm.

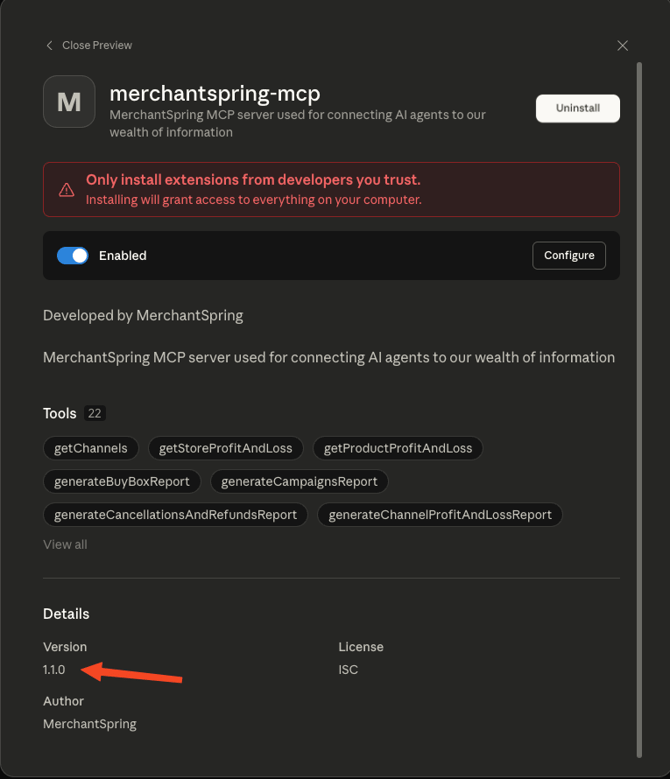

After installation, the interface will show Uninstall, confirming the update was successful. You can verify the installed version matches the version number in the file name.

Method 2: Configure MCP via Configuration File (Advanced)

This method requires editing Claude’s MCP configuration file.

The advantage is that the MCP server will automatically update when new features are released, so you won’t need to install new files.

Prerequisites

Before starting, ensure you have:

• Node.js version 20 or higher (https://formulae.brew.sh/formula/node)

• NPX installed (included with Node.js)

• A text editor

• An MCP-compatible client, such as:

  • Claude Desktop

  • Cursor

  • Other MCP-supported tools



Step 1: Generate Your API Key

Create an API key from the MerchantSpring Developer Portal: https://developer.merchantspring.io/dashboard

You will need this key for the configuration file.

Step 2: Open Claude’s MCP Configuration

In Claude Desktop, navigate to: Settings → Developer → Edit Config

This opens the configuration file.

File locations

Mac: ~/Library/Application Support/Claude/claude_desktop_config.json
Windows: %APPDATA%\Claude\claude_desktop_config.json

Step 3: Add the MerchantSpring MCP Configuration

Add the following configuration to your file.

If no other MCP servers exist, you can replace the entire file.

{
  "globalShortcut": "",
  "mcpServers": {
    "merchantspring-remote": {
      "command": "npx",
      "args": [
        "-p", "node@22",
        "-p", "mcp-remote@latest",
        "--",
        "mcp-remote",
        "https://mcp.merchantspring.io/mcp",
        "--header", "Authorization:${AUTH_HEADER}"
      ],
      "env": {
        "AUTH_HEADER": "Bearer <user-api-key-goes-here>"
      }
    }
  }
}

Replace: <user-api-key-goes-here> with your MerchantSpring API key.

⚠ Important

• Do not include the < > brackets

• Keep the Bearer prefix

  Example: "AUTH_HEADER": "Bearer abc123xyz456"



Step 4: Restart Claude Desktop

After saving the file:

1. Close Claude Desktop

2. Reopen the application

You should now see an MCP indicator in the chat input area.

Click it to view available MCP tools.

Troubleshooting

If the MCP server does not appear:

1. Restart Claude Desktop

Most issues are resolved by restarting the app.

2. Check the configuration file

Ensure the JSON format is valid.

Incorrect syntax will prevent the MCP server from loading.

3. Check Claude logs

Mac: ~/Library/Logs/Claude
Windows: %APPDATA%\Claude\logs
Look for files beginning with: mcp*.log

Node / NPX Issues (Windows)

If you encounter Node-related errors:

Install npm globally: npm install -g npm
Also confirm this directory exists: %APPDATA%\npm

Security Notice

MCP servers can execute code locally on your machine.

Only install MCP servers from trusted sources and review documentation before enabling them.

Tip:

If you’re unsure which installation method to use, we recommend Method 1 (.mcpb install) for the fastest setup.
